JUNIORS- 86-03 Evo sportster factory mid control 1.5" lift kit




JUNIORS- 86-03 Evo sportster factory mid control 1.5" lift kit
*THIS PRODUCT IS MADE TO ORDER. LEAD TIME IS APPROX 3 WEEKS INCLUDING POLISHING TIME.
-Made from 3/8” thick and 1/4” 304 SS plate.
-High polish, Mirror finish to blend in with your chrome case covers.
-Fits 86- 03 HD rigid mount sportsters
-Use these plates with your Oem mid controls to raise up your foot position 1.5” and also pushes your brake forward 1” to be even with the shift side.
(If you look at your controls from above before removing, they are not even close to even with each other..)
-These will be more comfortable then your OEM mids and the lift provides more room for custom exhaust that doesn’t look dreadful hanging below your frame.
-For use with OEM mid controls, if using after market mid controls you may need to make modifications.

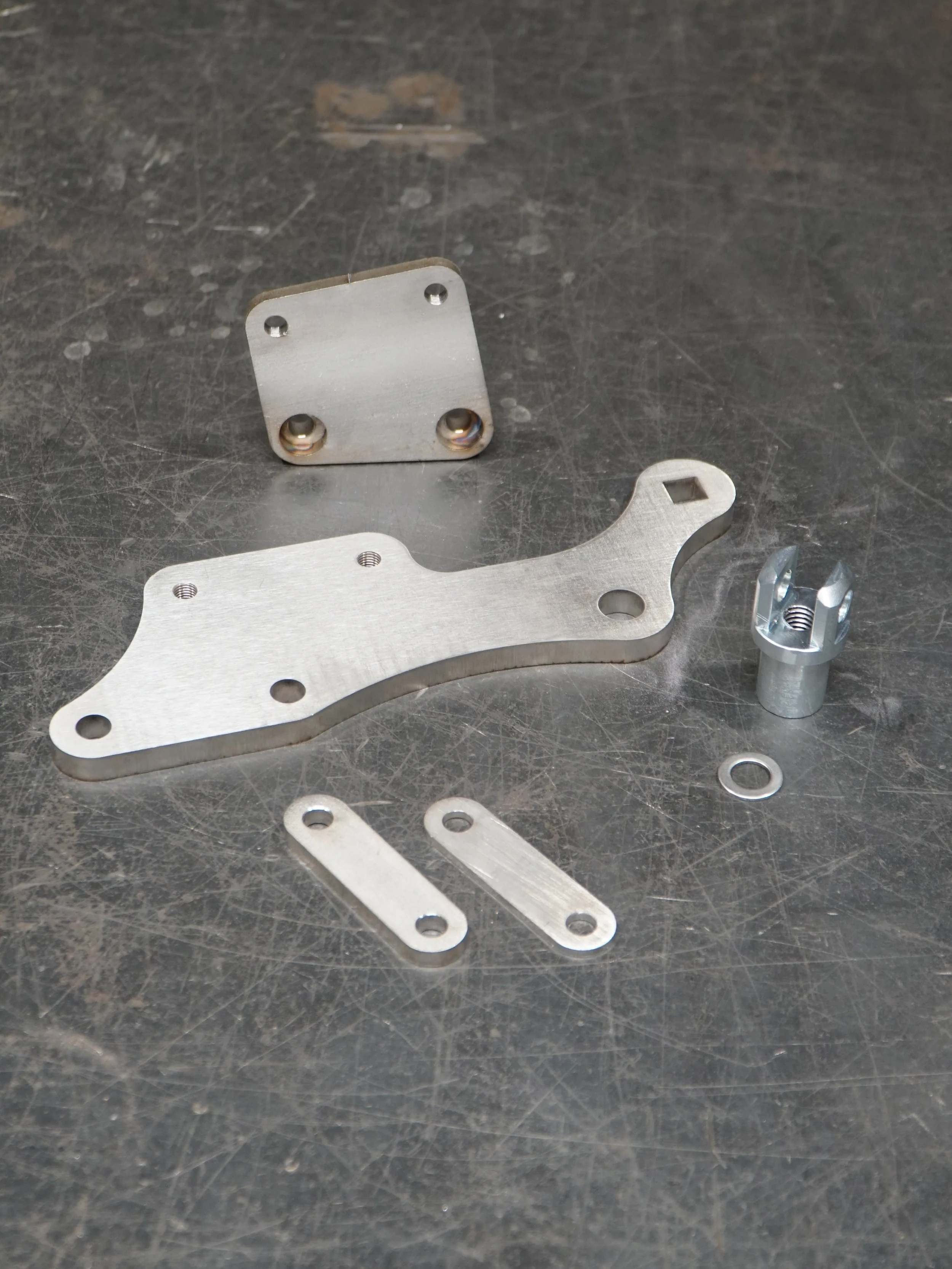

INCLUSIONS:

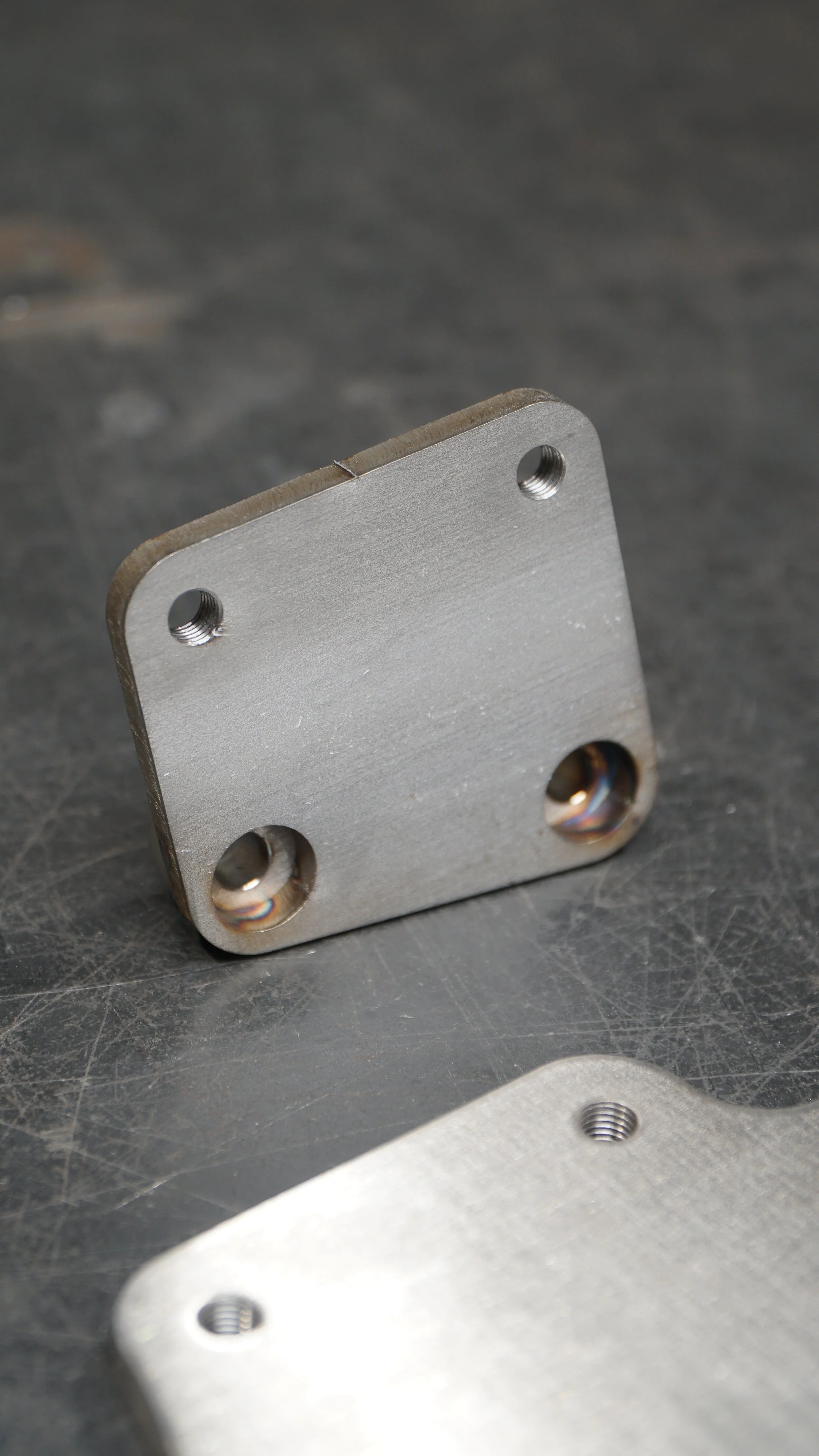

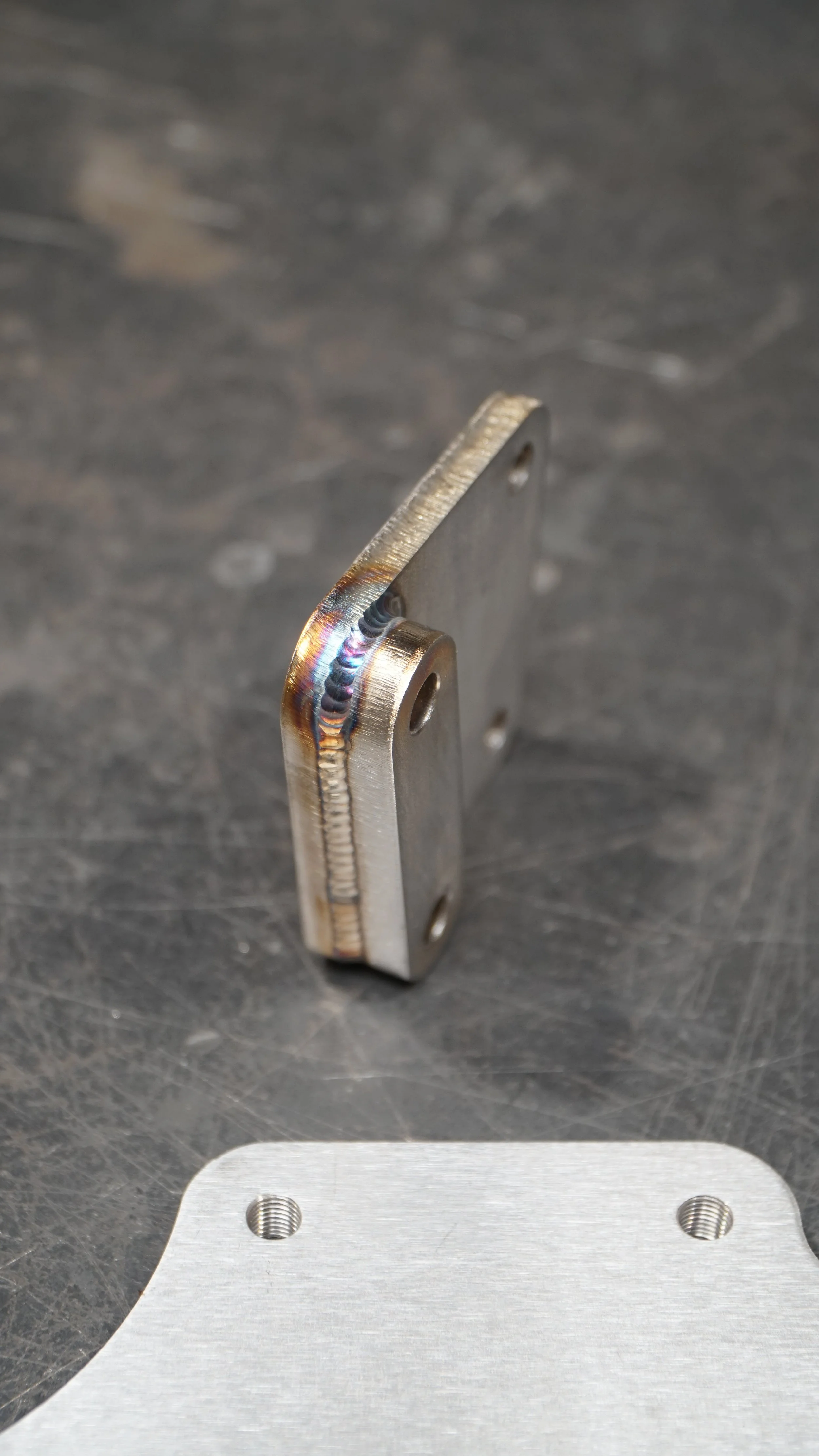

-Shift side lift plate
-(The long case bolts get reused)

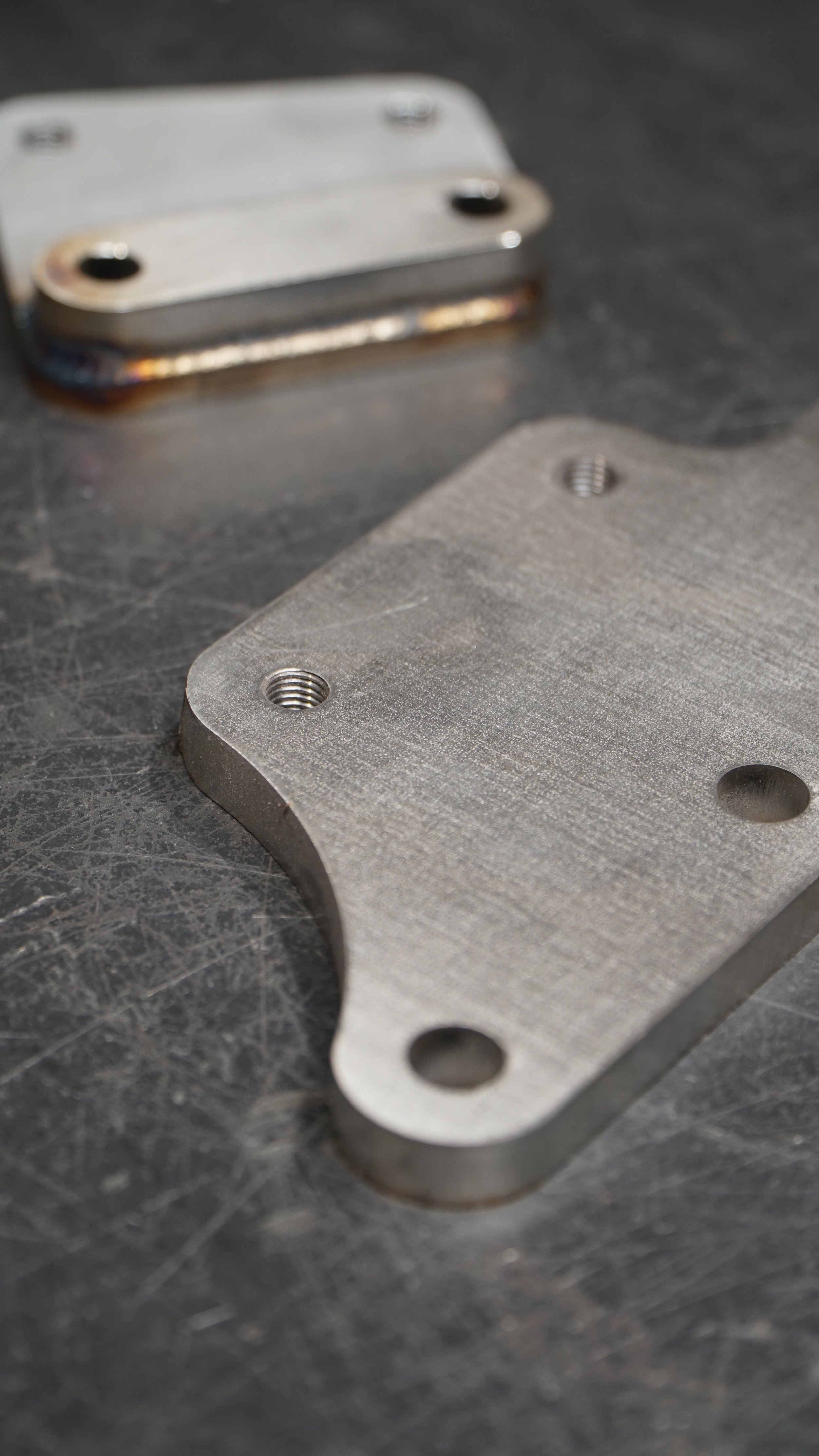

-Brake side lift plate
-New zinc plated bolt on clevis with stainless hardware
*Hardware is not included.
FITMENT NOTES:
Some shimming/ spacing is required!

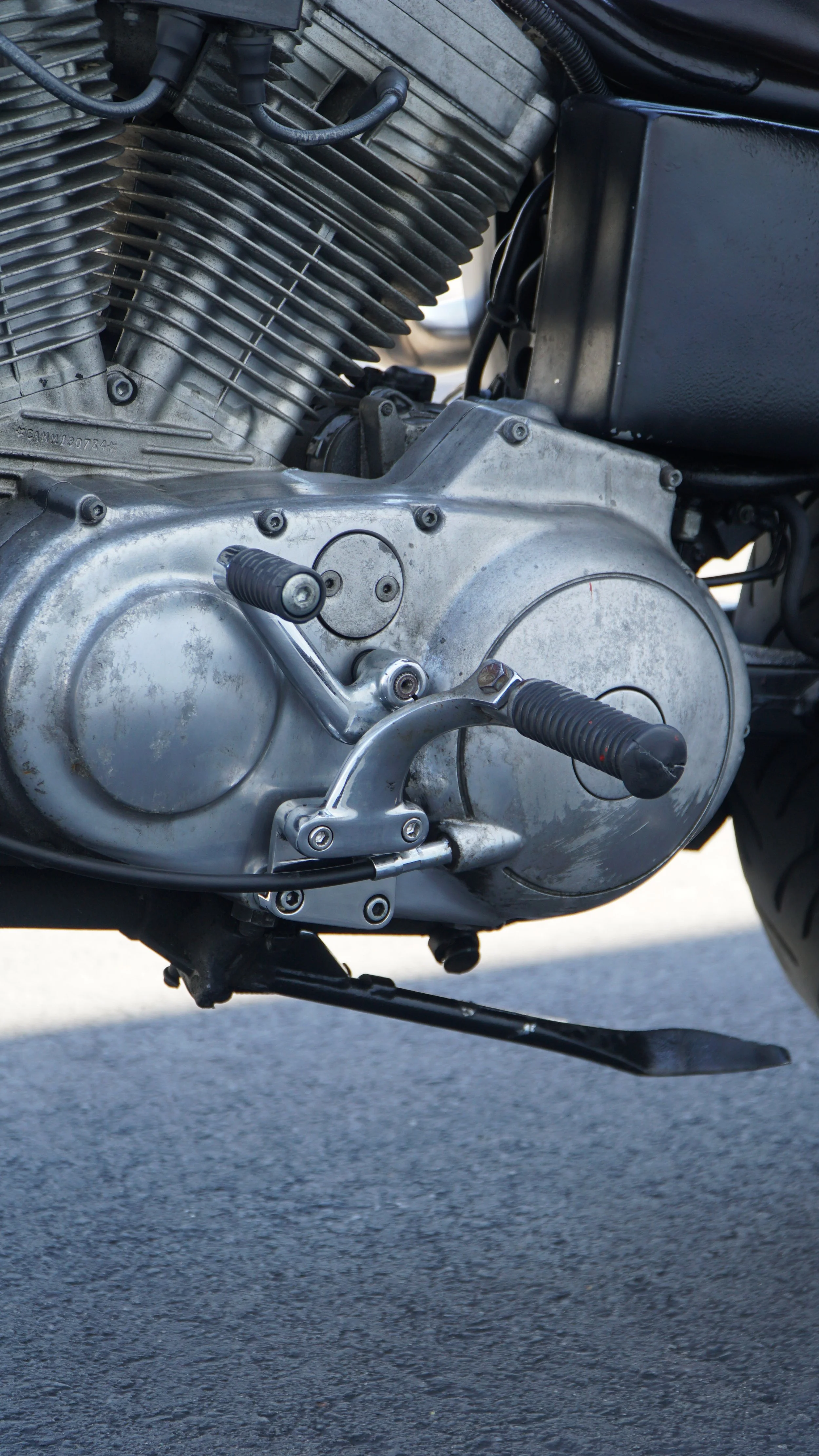

Shift side:
Your oem footpeg mount will require spacers to clear the cover. Typically 1/4-5/16” thick but may vary.

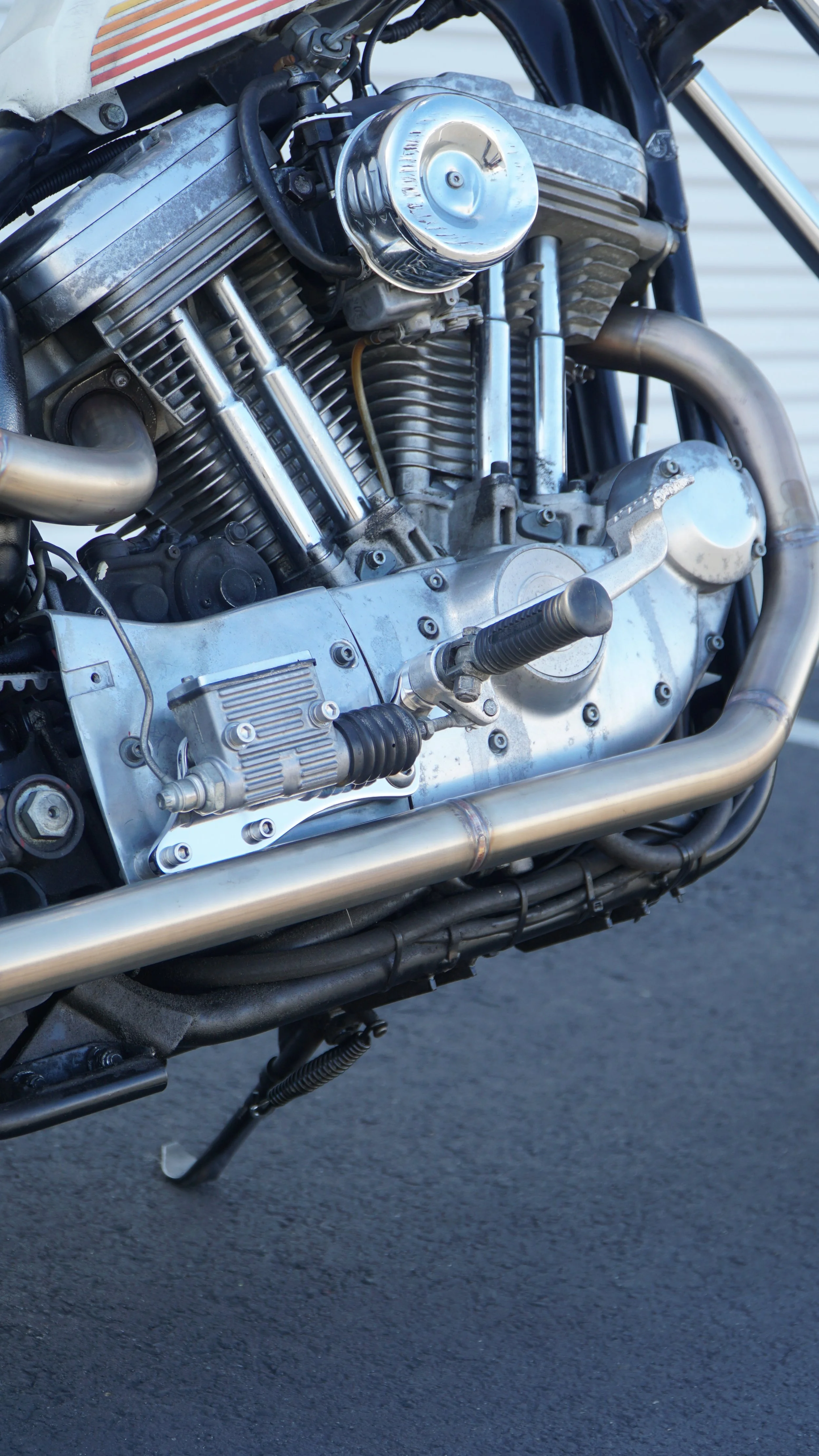

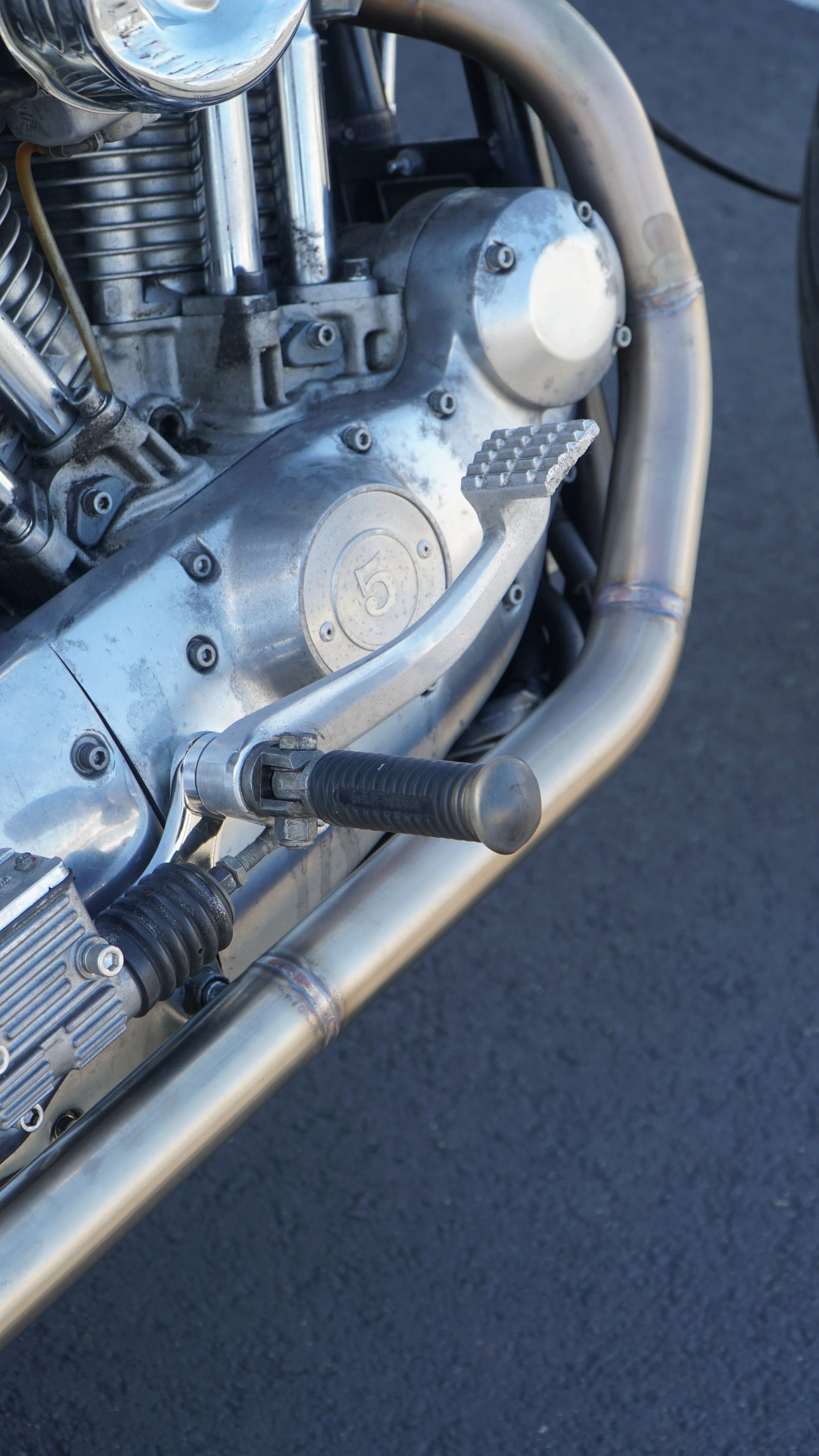

Brake side:
Some sprocket covers sit in too far compared to the primary cover and may require a thin shim washer to bring it out flush with the other cover.
Take care when tightening the 3 small cover screws, it is your responsibility to correct fitment before tightening. Failure to take care may result in damage.
SOME MINOR SPACING MAY BE REQUIRED! USE THE TWO INCLUDED SHIMS WHERE NEEDED, IF NEEDED.
MASTER CYLINDER SHOWN IS FOR REFERENCE ONLY, MASTER CYLINDER IS NOT INCLUDED.
MID CONTROLS ARE NOT INCLUDED.
